CVS4-RA Series - Compact OCR Sensor

  • Thương hiệu: OPTEX-FA
  • Mã sản phẩm: OPTEX-VISION
  • Tình trạng: Còn trong kho
Liên hệ
Giá sau Thuế: Liên hệ

Vision phát hiện lỗi kí tự, số Recognizes alphabetic, numeric, and special characters from thermal, hot, ink-jet and laser printers. Sixteen bank program storage.


CVS4-RA Series - Compact OCR Sensor

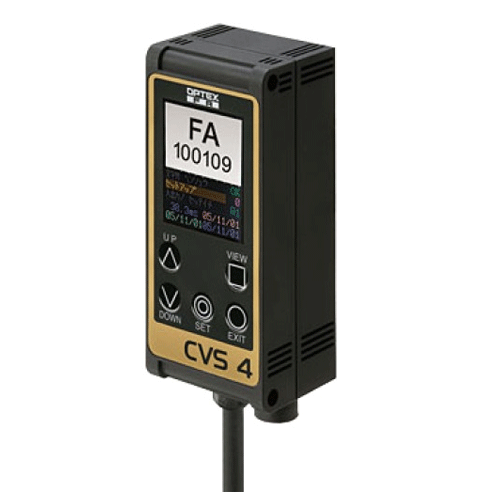

All-in-one Compact OCR Vision Sensor

  • Easy setup and High performance
  • Built-in Calendar
CVS4-RA Series

All in one OCR sensor

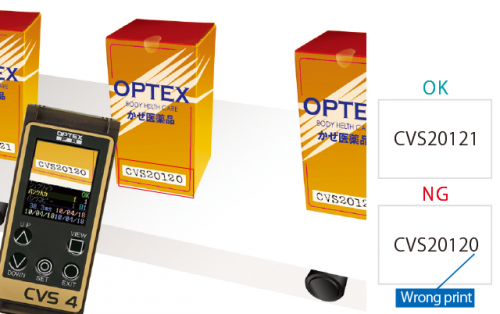

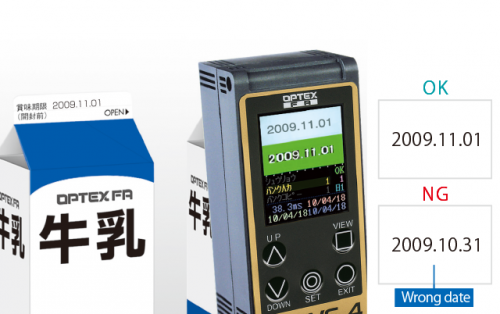

Recognizes Alphabetic, Numeric and Special characters. It can check shelf life, date of manufacture and lot number. It recognizes characters of Thermal printer, Hot printer, Ink-jet printer and laser marker.

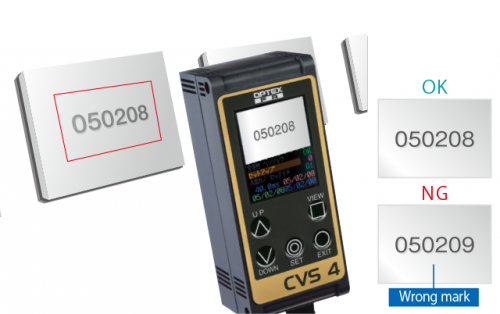

It compares the characters with internal Dictionary. You can setup as it determines NG when single character is wrong. You can also setup as it determines OK when the character has only small lack.

Storing NG image

When judge result changed from OK to NG, it stores NG image into internal memory up to 30 images. You can download the image data from CVS4-RA through optional cable CVS-C2C.

Wide range of line-up

  • You can choose a range from 5 ranges of line-up.

  • Character direction

  • Easy setup

    You can setup easily just following the instruction on the screen.

  • User dictionary

    You can make characters utilizing the images captured and transferred to PC.

  • Up to 16 Bank

    16 Banks are available in small all in one package.

  • Built-in Calendar

    It can check the date continuously overnight referring built-in calendar without error because of its tolerance of time.

THÔNG SỐ CƠ BẢN
FOV 30x15mm (±10%), 38×19 to 48×24mm, 21x10mm (±10%)
Model CVS4
Working distance 44 to 56mm, 65 to 85mm, 31 to 39mm
Tín hiệu đầu ra NPN or PNP open collector output x 2 (OK/NGoutput,External light control output) max. 100mA Residual voltage 1.0V or less
Voltage 12-24 VDC ±10%
Thời gian phản hồi 23ms to 48ms
