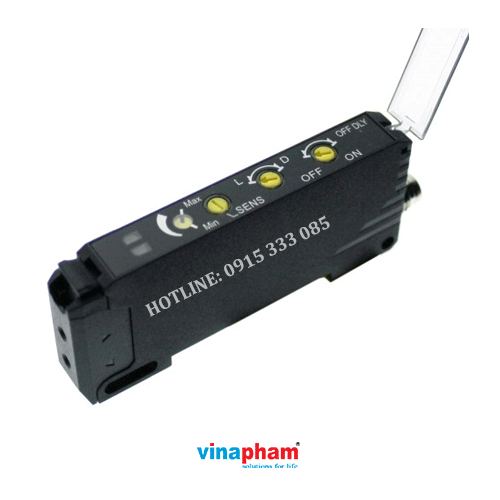

Bộ khuyếch đại sợi quang V2RF Series - High Speed Digital Fiber Sensor

  • Thương hiệu: OPTEX-FA
  • Mã sản phẩm: OPTEX-AMPLIFIER
  • Tình trạng: 2-3 Ngày
Liên hệ
Giá sau Thuế: Liên hệ

Bộ khuyếch đại fiber sensor V2RF- Optex-Fa, bộ khuyếch đại độc lập kết nối sợi quang fiber dùng cho phát hiện vật ở những vị trí khó gắn cảm biến, vị trí nhỏ, thời gian phản hồi nhanh 16μs


  • Mounting holes

    Features mounting holes for M3 screws. This enables the amplifier to be mounted without use of a DIN rail or mounting bracket.

  • Degree of protection: IP66

    Featuring an IP66 structure uncommon for fiber-amplifiers. Can be used without worry in factories or with devices in which contact with water occurs.

  • Cable and connector type

    Both a cost-effective cable type, as well as a connector type that does not require wiring when replacing sensors, are available.

  •

  • Simple control panel

  • Potentiometer with indicator

    Features an 8-turn potentiometer. Adjustment to the optimal sensitivity is possible even for applications that require fine adjustments.
    Also, if the potentiometer is turned multiple times, the current sensitivity will be difficult to ascertain. However, because the V2RF is equipped with a sensitivity indicator, it’s easy to see how much sensitivity is being adjusted.

  • OFF Delay Timer

    Equipped with an OFF delay timer fixed at 40 ms. By extending the pulse width to 40 ms or more, input is possible even for input devices that cannot receive short ON/OFF signals.

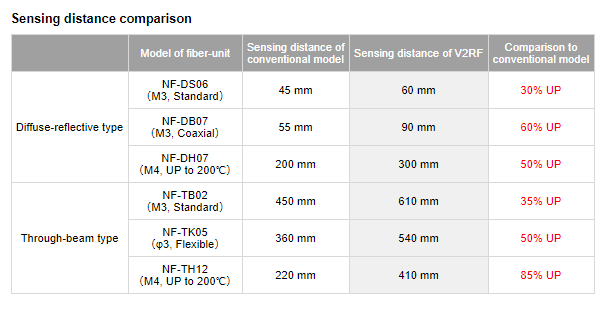

    Long range detection

    With the V2RF series, long range detection is achieved even though it has the same 25 μs response time as the conventional model.

THÔNG SỐ CƠ BẢN
Model V2RF-
Tín hiệu đầu ra NPN/PNP type Open collector Max. 100 mA/30 VDC
Voltage 10 to 30 VDC (including 10% ripple)
Thời gian phản hồi 250 μs
