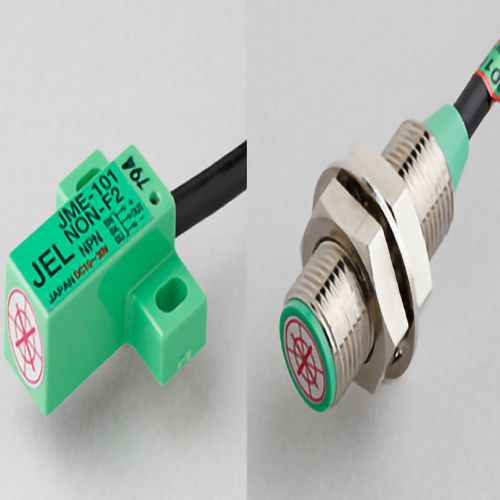

JME-101NON-F2

  • Thương hiệu: JEL
  • Mã sản phẩm: JME-101NON-F2
  • Tình trạng: Còn trong kho
Liên hệ
Giá sau Thuế: Liên hệ

Mr.HIẾU

SDT: 0915 042 370

MAIL: tech3@vinapham.com.vn


Specification



JME-101NON-F2

Configuration



Square *1

Power supply voltage



DC10V~30V *2

NO (Normally open) type



NON-F2

NC (Normally closed) type



NCN-T2

Standard operating distance





Set distance





Hysteresis





Standard detection object



JM-104

Operating distance

Product variation

Less than ±2 mm of standard operating distance

Temperature characteristics

- Temperature range from -20 to 70 º C, less than ±20% at 20 ºC

Voltage characteristics

Voltage range from DC10V to 30V, less than ±20% at 20V

Case Material



Heat resistance: ABS



Common Specifications

Output method

NPN open collector

Output power supply voltage



DC10~30V



Current consumption



7mA(12V)
14mA(24V)



Maximum output current



100mA(12V)
200mA(24V)



Residual voltage

0.6V or less

Operation configuration

NO When detection object approaches Load ON
NC When detection object approaches Load OFF

Display method

NO When detection object approaches LED lighting
NC When detection object approaches LED turning off

Maximum switching frequency

1000Hz

Insulation resistance

100MΩ or more

Withstand voltage

AC1500Vrms / For 1 minute

Operating temperature range

-20~70℃

RoHS compliant

*1 The detection surface of the square type changes according to the operation method (Front F / Top T).
*2 A power supply voltage of DC5 to 10V type is also available. The "1" at the end of the model number (Ex.: JME-001 NON-F1)
